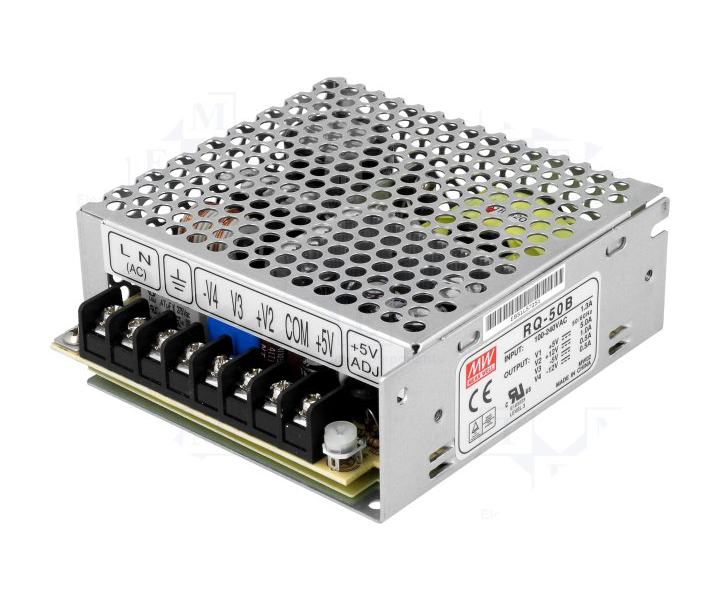

RQ-50B RQ50B +5/+12/-5/-12Vdc MEANWELL

ÜRÜN KILAVUZU İÇİN TIKLAYIN..



; font-size: 15px; color: rgb(0, 63, 123); text-align: center; border: 1px solid rgb(215, 215, 215);">Ürün Kodu Güç Çıkış Vdc Çıkış-1 Çıkış-2 Çıkış-3 Çıkış-4 Boyut RQ-50B 50W 5/12/-5/-12V 5V/0.5-5A 12V/0.2-1A -5V/0-0.5A -12V/0-0.5A 99x97x36mm RQ-50C 50W 5/15/-5/-15V 5V/0.5-5A 15V/0.2-1A -5V/0-0.5A -15V/0-0.5A 99x97x36mm RQ-50D 50W 5/12/24/-12V 5V/0.5-3A 12V/0.2-0.9A 24V/0.1-0.9A -12V/0-0.5A 99x97x36mm RQ-65B 65W 5/12/-5/-12V 5V/0.5-6A 12V/0.2-2A -5V/0-0.5A -12V/0-0.5A 129x98x38mm RQ-65C 65W 5/15/-5/-15V 5V/0.5-5A 15V/0.2-2A -5V/0-0.5A -15V/0-0.5A 129x98x38mm​ RQ-65D 65W 5/12/24/-12V 5V/0.5-4A 12V/0.2-1.5A 24V/0.1-1A -12V/0-0.5A 129x98x38mm​ RQ-85B 85W 5/12/-5/-12V 5V/2-7A 12V/0.3-3.1A -5V/0-0.5A -12V/0-0.5A 129x98x38mm​ RQ-85C 85W 5/15/-5/-15V 5V/2-7A 15V/0.3-2.5A -5V/0-0.5A -15V/0-0.5A 129x98x38mm​ RQ-85D 85W 5/12/24/-12V 5V/2-6A 12V/0.3-2A 24V/0.1-1A -12V/0-0.5A 129x98x38mm​ RQ-125B 125W 5/12/-5/-12V 5V/2-11A 12V/0.5-4.5A -5V/0-1A -12V/0-0.5A 129x98x38mm​ RQ-125C 125W 5/15/-5/-15V 5V/2-10A 15V/0.5-4A -5V/0-1A -15V/0-0.5A 129x98x38mm​ RQ-125D 125W 5/12/24/-12V 5V/2-8A 12V/0.5-2.5A 24V/0.1-2A -12V/0-0.5A 129x98x38mm​
